This page covers the parts shared by every Workday EIB file: delivery, dependencies, transformations and how to read the field tables. The files themselves, with their fields and the Workday field each one comes from, are described on the Jobs, Employees and Courses pages.

​
General specifications

The Workday EIB integration is file-based: Workday exports each file and delivers it to the customer’s TechWolf AWS S3 bucket, from where TechWolf reads it and syncs the data into the SkillEngine API. Setting up the custom report and the Outbound EIB that delivers it is described in Installation. The base path for every file is:
During the testing phase, the staging environment path is used instead: s3://techwolf-<customer>/staging/external/input/integrations/file_based/.
Each file has its own subfolder and naming pattern under that base path, given per file on the Jobs, Employees and Courses pages. Files must be written into those subfolders, not into the root of the file-based path. For the wider S3 layout, see File Organization. The export frequency is configured by the customer and agreed with TechWolf during implementation. It is set on the EIB schedule. Each file is marked Required, Highly recommended or Recommended. Required files must be delivered for the integration to work; the others add skill-relevant signal and are delivered where the data exists.

​
Shared rules

The following rules apply to every Workday file:
  • All files are presumed to be full dumps, i.e. the state of all relevant entities is expected to be given in each export file, not just the changes compared to the last export.

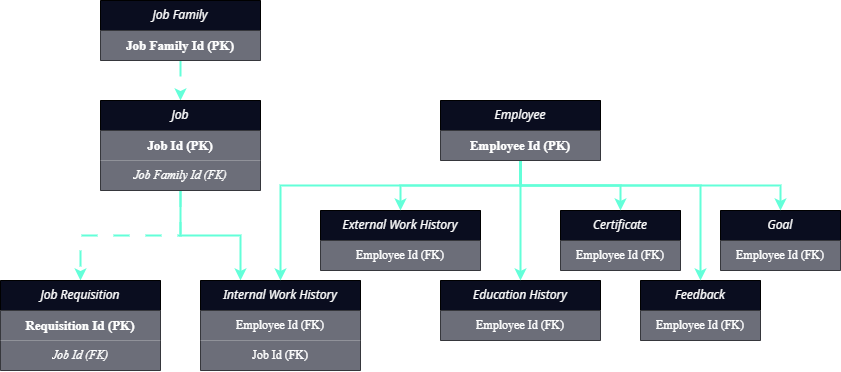

  • Not all files are necessarily required, though existing dependencies must be respected. For example, if the basic information of employees (i.e. their existence) is already synced, it is optional whether to include e.g. employee goals as well; yet when employee goals are to be synced, the employee baseline sync must be included as well. An overview of the dependencies is given below:
  • All expected fields can be provided under another name, or split among different fields, as long as this division or rename is then used consistently (and is communicated to TechWolf). This applies to both the fields marked as “required” as those that are marked as “recommended”. When multiple input fields are taken together to form one expected (or additional) field, the resulting field will consist of the values of the constituent fields, separated by a hyphen surrounded by spaces (” - ”). Additionally, some field conversions are also supported; in particular, dates can be converted to the required format, and arbitrary string-to-string mappings can be configured, which can be particularly useful in combination with field filtering (mentioned below). Possible limitations specified on fields always apply after transformation.
  • Fields that are marked as “required” are generally expected to always be present (after transformation). However, there is also support for “default values”, though this only applies to certain fields (marked with *). Setting defaults should be avoided, since it makes data less informative, and should only be used in cases where it is unavoidable and doesn’t cause unnecessary obfuscation or decreased informativeness. One use case could be to set all certificate descriptions to be ”-” by default if no actual certificate descriptions are available, but the certificate titles are still informative enough to warrant syncing certificates.
  • The integrations support field filters: per input file, one field can be chosen to act as a filter (besides possibly also carrying information to be synced), where the input object (csv row, xlsx row, …) is only processed if the value of the filter field is either contained in the given whitelist of values or not included in the given banlist of values. Note that filtering is completely optional and that filtering is applied after input transformation. Do note that TechWolf always prefers filtering at the EIB where possible, to prevent unnecessary data transfer and processing.

slugify

Slug strings are strings consisting of only lowercase letters, uppercase letters, numbers, underscores (_) and dashes (-).When non-slug strings are slugified at TechWolf’s side, we use a mapping as defined in slugify, except for the following mappings:
  • ”/” becomes “_SLASH_”
  • ”(” becomes “_OPENR_”
  • ”)” becomes “_CLOSER_”
  • ”[” becomes “_OPENS_”
  • ”]” becomes “_CLOSES_”
  • ”{” becomes “_OPENC_”
  • ”}” becomes “_CLOSEC_“

​
Reading the field tables

Each file on the Jobs, Employees and Courses pages has one table, with one row per Workday field:
  • TechWolf field is the column name TechWolf expects in the file.
  • Primary Business Object, Business Object and Workday field give the full path to the field in Workday: the business object the report is built on, the related business object the field sits on, and the field itself. A field whose name starts with CF is a calculated field.
  • When a TechWolf field is listed on several rows, the Workday fields on those rows are joined into one value, separated by " - ".
  • Required is Required or Recommended. A Required field must have a value on every row. A Recommended field can be left empty, but send it wherever Workday holds a value. Required* means the field supports a default value (see the notes above).
  • Key marks the external ID of the file (Primary key) and fields that point to the primary key of another file (Foreign key). Fields without a Key are data fields used for skill inference or context.
  • Max chars gives the longest value the SkillEngine API accepts for that field, measured after transformation. A row whose value exceeds the limit is rejected on ingest, so over-long values should be truncated or dropped in the EIB rather than left for the integration to reject. No limit means the API sets no maximum; n/a means the field is not free text (a date, a boolean or a number).
  • n/a in the Workday columns means there is no default Workday field; the source, if any, is agreed with TechWolf during implementation.

​
Profile data and custom properties

Job Families and Jobs can be extended with an arbitrary amount of “profile data”, which will be used for skill extraction. The profile data types available are:
  • Job Families: job_family_description
  • Jobs: job_description, job_title, vacancy, skill_notes
For every profile data variant, we need the following information:
  • The name of the source field(s) in the input (and their ordering, in case of concatenation)
  • The profile data type
  • Whether the profile data should always be present (true or false)
Job Families, Jobs, Vacancies, Courses and Employees can also be extended with an arbitrary amount of “custom properties”, which will NOT be used for skill extraction, but might be useful for querying or other identification, grouping or disambiguation scenarios. For every custom property, we need the following information:
  • The name of the source field(s) in the input (and their ordering, in case of concatenation)
  • The name of the custom property (at least 1 and at most 100 characters; cannot contain ”__”)
  • The data type of the custom property (“text”, “number”, “boolean”, “list[text]” or “datetime”)
  • Whether the custom property should always be present (true or false)
