Quick reference

1

Navigate to the Data Integrator page

In the Console sidebar, navigate to Integrations → File-based. This page is only visible if you have the write:integrations_manager permission.
2

Create a new integration

  • Integration Name: Name for the integration. Make it unique to this integration.
  • Integration Type: Determines the endpoints that will be used to ingest data. It maps directly to the SkillEngine API endpoints.
3

Configure the Input Node

  1. Click the node to open the detail view.
  2. There is one primary input set up. Uploading files for this configuration will trigger the integration if enabled.
  3. Set up the other fields for the file or connection.
  4. Optionally, configure extra sources. Click Add Source, choose a sensible alias, indicating what the source is about.
4

Join configured inputs

Drag edges from one input down to another on the left side of the input node. Join arrows can only go downwards. This links inputs together.
5

Configure the Output Node

  1. Click the node to open the detail view.
  2. Set the Delivery Type to whichever is applicable.
  3. For certain delivery types, choose to Auto-generate External IDs.
6

Add connections and operations to transform input to output

  1. Right-click to add operations.
  2. Connect handles to make the data flow from one operation to another.
  3. Save your integration.

​
Setting up an integration

A new integration is defined by a set of data inputs (files, connectors) that together form a datasource to be loaded into the SkillEngine API. An integration can be “recurring”, each new file upload or connector trigger being an updated version of the same source. One of the inputs is the primary, the driver of the integration. When that input is triggered with new data (a new file arrives, a connector is triggered), the integration is considered out of date, and will try to update the SkillEngine API with the new data.
An example is a Learning Skill Event integration. At the customer’s side, there is a learning system, which can export a CSV file with the learner’s ID, Name, Email, Learning Title, and Learning Description. The ID does not directly map to an Employee in the SkillEngine API, but we do have an export from our identity provider that contains that mapping.Together, the learning_events_20260101.csv and identity_provider_mapping_20260101.csv form a datasource to be loaded into the SkillEngine API.The learning_events_20260101.csv file is the primary file, and the identity_provider_mapping_20260101.csv file is an extra file. The integration will be run on the learning_events_20260101.csv file, and will use the latest version of the identity_provider_mapping_<latest_date>.csv file to map the learner’s ID to an Employee in the SkillEngine API.
When an integration triggers on new data (a file upload or connector), or is manually invoked, a run is created for that integration. A run is defined as a single execution of an attempt to reconcile new or specified input data with the SkillEngine API.

​

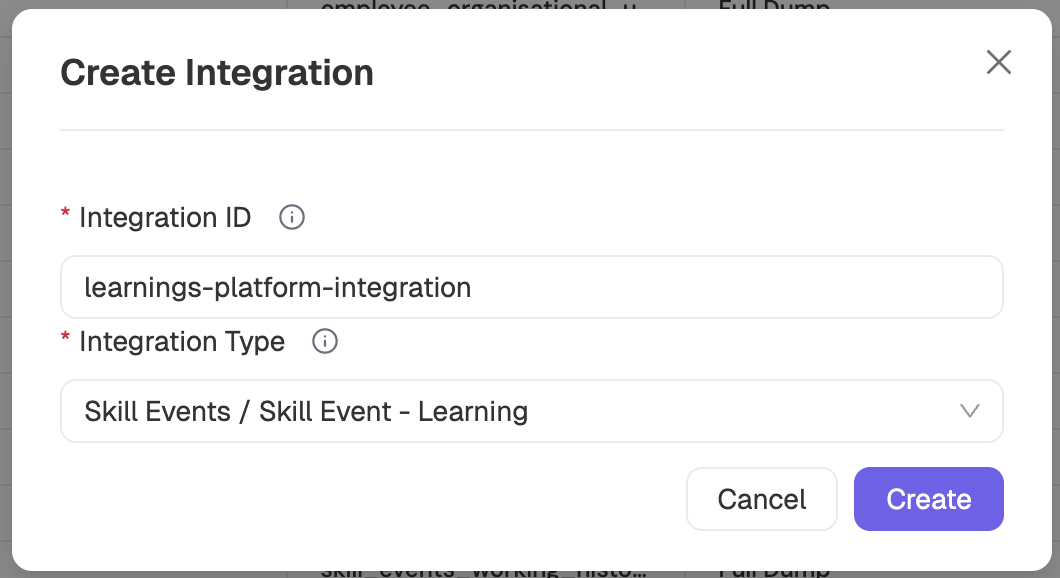

Step 1: Creating a new integration

Integrations are created in the Data Integrator UI, in the Console. Navigate to Integrations → File-based in the sidebar. If you have the write:integrations_manager scope on the Console, you will see a + Create Integration button. This will open a modal that first asks more details about what type of integration you want to create, after which it will drop you in the Integration Editor. Create Integration Modal For the Integration Name, make it unique to this integration. This is used to identify the integration. For the Integration Type, select the type of integration you want to create. These map directly to the SkillEngine API endpoints. Click Create to navigate to the integration editor. At this point, the integration does not exist yet, it needs a valid configuration. Integration Editor

​
Step 2: Configuring the input node

The input node is the first node in the integration. It is used to configure the input data for the integration, which includes all inputs (files or connections) needed to load the datasource into the SkillEngine API. At first, the input node will be empty, only showing a primary tag. That bold tag indicates the “alias” of the input. It is intended to help you differentiate between the different inputs you have configured. Input Node The input node is configured by clicking on the node to open the detail view. This opens a configuration panel on the left side of the editor.

​

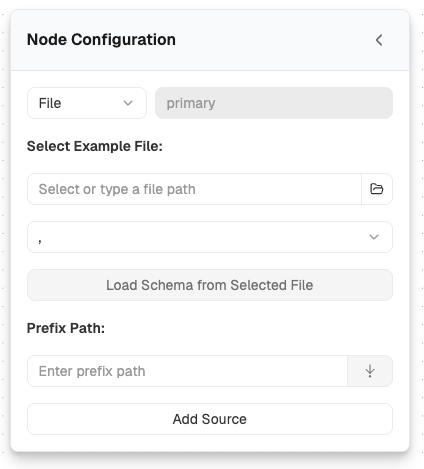

Configuring the primary input

The primary input is pre-created with the alias primary. This alias is just a label to help you tell inputs apart — it does not affect the data source. There are multiple possible source configurations:
  • Setting up files as a source:
    • Example file: Select an example file from S3 using the file picker. This helps the Data Integrator understand the column structure of your data. It is also used for previewing data later.
    • Load Schema from Selected File: After selecting an example file, click this button. The Data Integrator reads the column headers and populates the input node with output handles — one per column. These handles are what you connect to operations and the output node later.
    • Prefix: Configure the prefix that identifies which uploaded files belong to this input configuration. When a file is uploaded to S3, the Data Integrator matches it to an integration based on this prefix (the first part of the file name). For example, a prefix of learning_events would match learning_events_20260101.csv.
    • Separator: Choose the CSV separator — either , (comma) or ; (semicolon). This must match the actual delimiter used in your data.

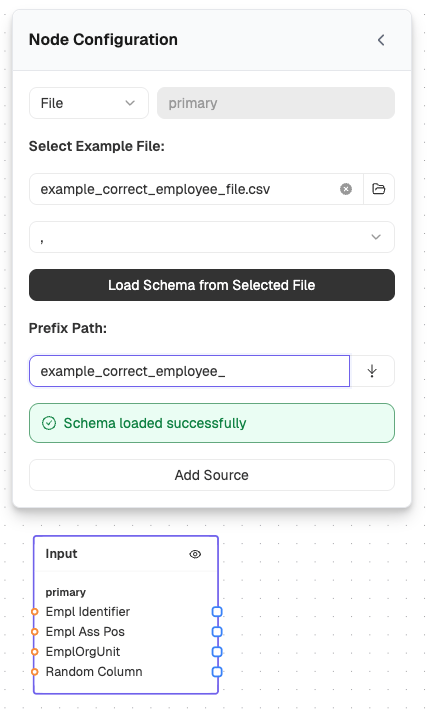

Input Node with file source
  • Setting up a connector as a source:
    • Connector: Select a connector or create a new one.
    • Load Schema: This happens automatically when you select a connector.
    • Note that preview is not yet possible for connectors.

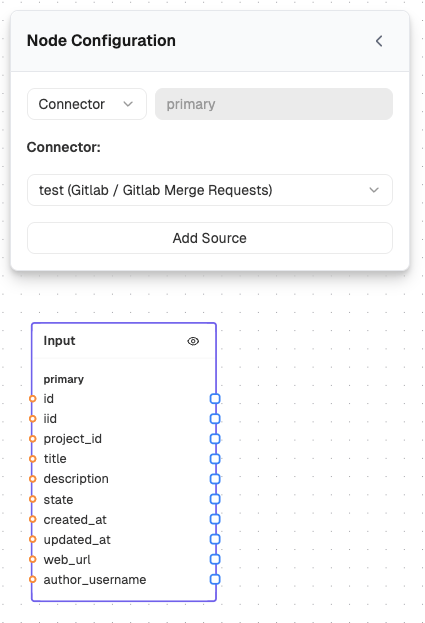

Input Node with connector source

​
Adding extra sources (optional)

If your integration needs data from multiple sources (e.g., a mapping file in addition to the main data source):
  • Click Add Source at the bottom of the input node detail panel.
  • Choose a sensible alias for the new source (e.g., identity_mapping), indicating what it contains.
  • Configure the new source the same way as the primary input: select an example file, load the schema, set the prefix and separator.
  • The primary input is special: uploading a file that matches the primary prefix triggers the integration (if enabled). Extra inputs do not trigger runs — the integration always uses the latest version of each extra input.

​
Step 3: Joining configured inputs

If you added extra sources in the previous step, you need to define how they join to the primary input (or to each other).
  • On the left side of the input node, each input’s columns appear as connection handles.
  • Drag an edge from a column in one input to a column in another input to define a join key. For example, drag from primary.employee_id to identity_mapping.source_id.
  • Join arrows can only go downwards (from an input listed higher to an input listed lower). The primary input is always at the top.
  • All joins are left outer joins — rows from the upper input are preserved even if there is no match in the lower input.
  • You can join on multiple columns between the same two inputs by adding multiple join edges.
Join edges appear as dotted lines on the canvas to distinguish them from regular data flow edges.

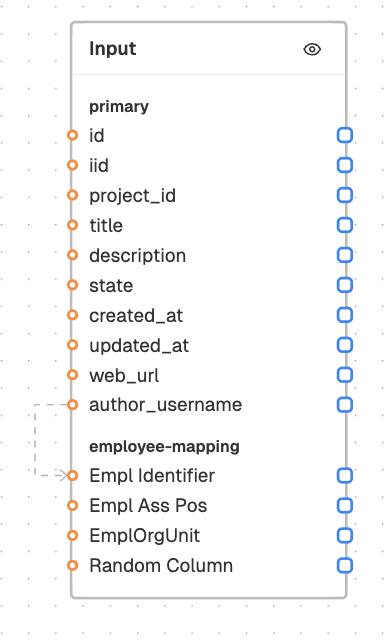

Input Node with joined inputs

​

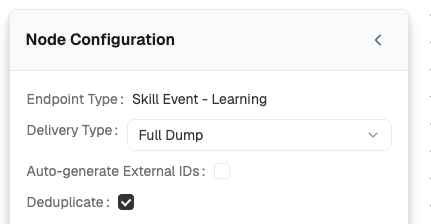

Step 4: Configuring the output node

The output node defines how the transformed data maps to the SkillEngine API. Click the output node to open its detail panel. Output Node

​
Delivery Type

  • Full Dump: Every run replaces the entire dataset. The Data Integrator compares the new data with the current API state and creates, updates, or deletes entities as needed to make the API match the data.
  • Delta (diff): The integration tracks changes incrementally. Useful when your source data contains explicit create/update/delete indicators or when your dataset is large.

​
Auto-generate External IDs

  • For certain Entity Types, you can toggle Auto-generate External IDs. When enabled, the Data Integrator generates a unique identifier by hashing the values of the fields you connect to the output node. This is useful when your source data does not have a natural unique key.
Auto-generate External IDs is a last resort for when your source data does not provide any stable, unique identifier for each record. It is often possible to combine fields into a unique identifier, or revisit the input data to provide a stable identifier. If not, the input data could be fully reloaded at any time.

​
Step 5: Adding operations to transform data

Operations are intermediate nodes that transform data between the input and output nodes. They are added via the right-click context menu on the canvas. Right-click on an empty area of the canvas to see the list of available operations. Each operation is a self-contained transformation with its own input(s) and output(s).

​
Available operations

Maps source values to target values. Useful for converting codes or categories from the source system to values expected by the SkillEngine API.
  • Input: A single field (connected from the input node or another operation).
  • Output: The mapped value.
  • Configure key-value pairs in the detail panel: each row maps a source value (left) to a target value (right).
  • Optionally set a default value — used when the source value does not match any of the configured mappings. If no default is set, unmatched values pass through as-is.
Parses date strings from the source data into a standardised format.
  • Input: A single date field.
  • Output: The parsed date in ISO format.
  • Configure the date format using strftime directives (e.g., %Y-%m-%d for 2026-01-15, %d/%m/%Y for 15/01/2026).
Concatenates multiple input fields into a single output string.
  • Inputs: Two or more fields, can be a literal value (by leaving it unconnected).
  • Output: The concatenated string.
  • Configure a separator (e.g., -, , , ). The separator is placed between each value.
  • Null values are ignored during concatenation. a and null will become a; a and b will become a-b. The separator is ommitted on null values.
Converts text to a URL-safe slug format (lowercase, special characters replaced with hyphens).
  • Input: A single text field.
  • Output: The slugified text.
Filters rows based on one or more conditions. Rows that do not match are excluded from further processing.
  • Input: A single field to evaluate.
  • Output: The same field, but only for rows that pass the filter.
  • Add one or more conditions in the detail panel:
    • Comparison: equals (=) or not equals (!=).
    • Value: The value to compare against.
    • Logical operator: Combine multiple conditions with AND or OR. Operations get added in order of appearance. So, filter_1, OR filter_2, AND filter_3 will be evaluated as (((filter_1) OR filter_2) AND filter_3).
Returns the first non-null/non-empty value from multiple inputs. Useful when a value could come from different source columns and you want to pick the first available one, e.g. dates.
  • Inputs: Fields in order of fallback.
  • Output: The first non-null value from the inputs, evaluated in order of appearance.
A specialised output node variant for mapping data to Custom Properties on the SkillEngine API. Use this instead of the regular output node when your integration needs to set Custom Properties.
  • Maps input fields to Custom Property names.
  • Produces a JSON-encoded structure for each Custom Property.
There is a list variant of Custom Properties Output, which is used to set list[text] Custom Properties. This node aggregates multiple rows of your data into a single list value. You need exactly one Custom Property List integration per list[text] custom property.

​
Step 6: Connecting nodes

Edges are the lines that carry data from one node to another. They define the data flow of your integration.

​
How to connect nodes

  • Each node has handles: small connection points on its edges.
    • Right-side handles (source/output): Data flows out of the node.
    • Left-side handles (target/input): Data flows into the node.
  • Drag from a right-side handle to a left-side handle on another node to create an edge.
  • Handles are labelled with the field name (e.g., primary.email, mapped_value, external_id).
  • You can connect input node columns directly to output node fields (for pass-through mapping) or route them through one or more operations first.

​
Tips

  • You can multi-select nodes by holding Shift and clicking.
  • Copy/paste nodes with Ctrl+C / Ctrl+V (or Cmd on macOS).
  • Use the Preview button (eye icon) on a node to see a sample of its output data before saving.

​
Step 7: Previewing and saving

​
Preview

  • Click the Preview button (eye icon) on a node to see a sample of its output data before saving.
  • This is a dry run of the first 50 rows of the integration, it does not actually send any data to the SkillEngine API.
  • Connector outputs and some nodes do not support preview.

​
Save

  • Click the Save button at the bottom of the editor to persist your integration configuration.
  • If this is a new integration, saving creates the integration for the first time. It does not exist until you save.
  • The integration is saved but not automatically enabled. You need to enable it separately (see below).
If you navigate away from the editor without saving, your changes will be lost.

​
Step 8: Enabling the integration

After saving, navigate to the integration details page.
  • The details page shows metadata about the integration: Integration Name, Entity Type, Delivery Type, and Enabled status.
  • Use the toggle switch to enable or disable the integration.
  • When enabled, uploading a file matching the primary input’s prefix will automatically trigger a run, or on a schedule for a connector primary input.

​
What’s next?

Once your integration is set up and enabled, see How to run an integration for details on triggering runs, monitoring progress, and reviewing results.

​
FAQ

Auto-generate External IDs is a last resort for when your source data does not provide any stable, unique identifier for each record.Why you should avoid it when possible:External IDs are generated by hashing a combination of fields from the input data — typically all fields except highly variable ones like timestamps. This means:
  • If any of the hashed fields change (e.g., a company name is corrected), the generated ID changes. The Data Integrator cannot tell whether this is an update to an existing record or a brand new record.
  • This leads to duplicate data in the API, missed deletes, or unexpected overwrites.
For example, imagine a working history event with fields for title, description, start date, end date, and company. All of these are included in the hash. If the company name changes from “Acme Corp” to “Acme Corporation”, the generated external ID changes — and the Data Integrator treats it as an entirely new event rather than an update.When it is acceptable:
  • Legacy systems that genuinely have no reference ID for records.
  • Text-based data sources with no natural key.
The Deduplication option removes duplicate rows from your input data before it is loaded into the API. When enabled, it keeps only the first row in a set of rows that share the same external ID.
We recommend enabling deduplication for all integrations. It is enabled by default.
Choose Delta delivery when your source system cannot or should not export all data every time. This is common for:
  • Large datasets like learning histories, where re-exporting everything on each run is impractical.
  • Systems that only track changes — the source only knows about new, changed, or removed records since the last export.
With Delta delivery, your configuration must include an operation column. Connect this column to the operation field on the output node. The operation value for each row is either:
  • update — creates the entity if it does not exist, or updates it if it does.
  • delete — removes the entity from the API.
A common pattern is to do an initial Full Dump to load all existing data, then switch the integration’s delivery type to Delta for all subsequent runs with incremental changes.Choose Full Dump when your source can export a complete snapshot every time. This is simpler and less error-prone, because the data itself is the single source of truth — anything not in the data will be deleted from the API.
If the content stays the same (still the same entity type) but the column structure changes — for example, columns are renamed, added, or removed — you need to update your integration configuration:
  1. Open the integration in the editor.
  2. On the input node, select a new example file that reflects the updated format.
  3. Click Load Schema from Selected File to update the column handles.
  4. Reconnect any broken or new edges between the input node and your operations or output node.
  5. Save the integration.
The prefix can remain the same as long as the files still represent the same data. The Data Integrator will use the updated configuration for all future runs.If the prefix itself changes, update it on the input node as well.
